Bcmc 360 Rotated Foundation Mounted Cantilever Column Fixed Swing Slewing Pillar Jib Crane for Workshop Warehouse Construction

BCMC Machinery HSC-1000 is a kind of crane that fixed on the ground, which is mainly consisted of up-pillar, down pillar

Send inquiry

Description

Basic Info.

Model NO.	HSC-1000
Structure	Jib Crane
Material	Steel
Type	Cantilever
Lifting Capacity	1-2 Ton
Arm Length	4500 mm
Overall Weight	900 Kg
Transport Package	Plastic Packing
Specification	4500 mm
Trademark	BCMC
Origin	Putian, Fujian, China
HS Code	8414100090
Production Capacity	50 Pieces/Month

Product Description

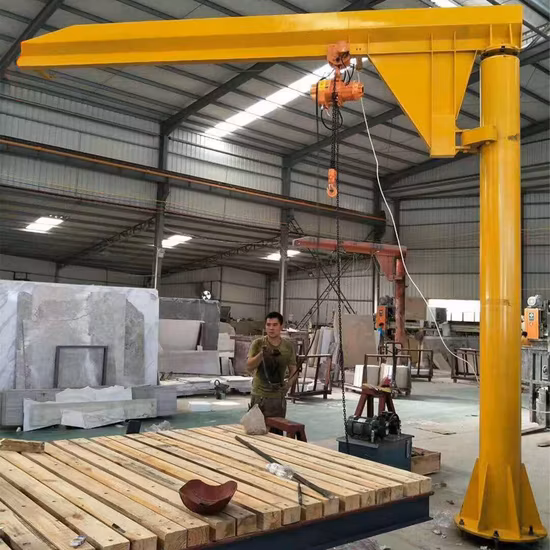

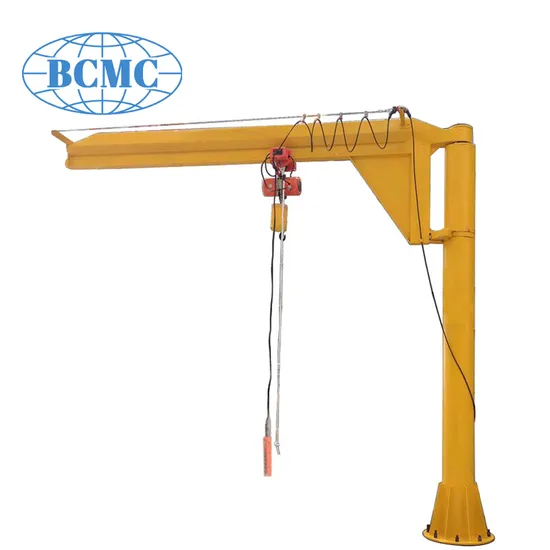

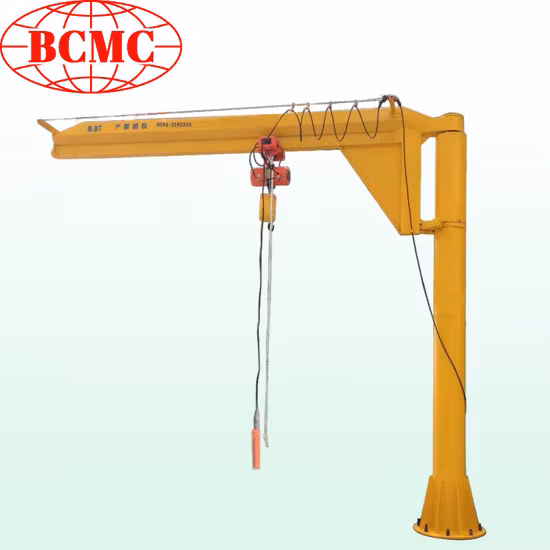

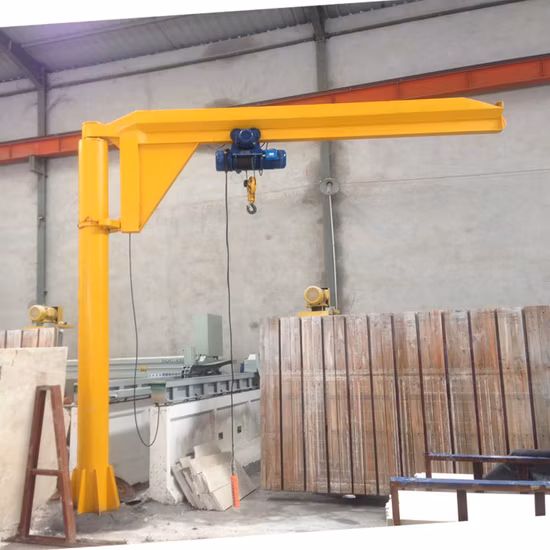

BCMC Machinery HSC-1000 is a kind of crane that fixed on the ground, which is mainly consisted of up-pillar, down pillar, main beam bar, electric hoist, rotating mechanism and electric system, etc. It's versatile and easy to operate. Jib crane provides a space-saving and economical solution for lifting and moving items for assembly within a smaller radius. This free standing Jib crane can be supplied with manual slew at standard or with motorized slew for option.
Main Features:

Small space occupied, easy installation.
Simple structure, operate convenience.
Turning agile, wide working conditions.
Energy-saving, time-saving, effort-saving, safe and reliable operation.

Bcmc 360 Rotated Foundation Mounted Cantilever Column Fixed Swing Slewing Pillar Jib Crane for Workshop Warehouse Construction

TECHNICAL DATA
Model No.		HSC-1000	HSC-2000
Lifting Capacity	kg	1000	2000
Colum Height	mm	4400	4400
Arm Length	mm	4500	4500
Slewing angle	°	0-360	0-360
Mode of arm rotation	Manual (or motorized for option)
Weight	kg	900	1200
