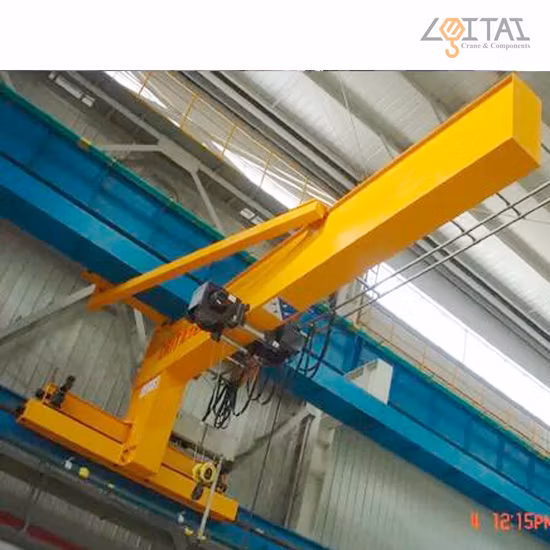

1 Ton Movable Wall Mounted Cantilever Crane Jib Hoist Crane

1 Ton Movable Wall Mounted Cantilever Crane Jib Hoist Crane

Introduction Jib crane is a kind of small and medium-speed lifting equipment developed recently. It is widely used in mi


Basic Info.
Model NO. Jib crane
Type Cantilever
Lifting Height 2m - 10m
Revolving Radius 1m - 7m
Revolving Angle 180° & 270°& 360°
Lifting Speed 6.6/2.2
Total Height 2m - 10m
Travelling Type Electrical
Revolving Type Electrical
Capacity(Kg) 3000 Kg
Beam Material H Beam & Kpk Beam
Transport Package Wooden Case
Trademark LEITAI
Origin China
Production Capacity 100000 Sets Per Year
Product Description


Jib crane is a kind of small and medium-speed lifting equipment developed recently.
It is widely used in mines, workshop, warehouse , wharf,etc.
Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects.
Fixed column slewing jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
High quality workshop jib crane Jib Crane:
Jib Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.

Compact Design:
The advanced design idea gives the crane light structure and excellent performance, at the same time narrows the hook operation distance in the maximum, and improves the space utilization rate effectively. So it can reduce your workshop investment costs and bring more investment returns.

Smooth, Fast Loading
The standard configuration of the crane are the trolley and crane both having step-less frequency conversion control system, with features of braked stably, accurate location, and reliable performance, which make traveling steady, positioning quick, solving the problem of swing of goods. Safer, Reliable, Using Free Maintenance Design The crane used the best technology in the whole process shows its superiority, especially in the frequent operations. The perfect braking system improves safety and reliability a lot, which can be adjusted by itself with dustproof design, and it can be used more than 1 million times. Hardening and polishing the tooth surface will make sure the crane operate without trouble.

Excellent Performance
As an important logistics equipment, if the crane is out of order, it will cause great damage. So our products always having high quality will be your best choice.
Jib Crane Feature

1. Rated Lifting capacity: 0.5~20t.
2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional
Data Sheets

Capacity(KG)500 KG1000 KG2000 KG3000 KG5000 KG
Beam MaterialH Beam & KPK Beam
Travelling TypeElectrical & Manual ElectricalElectricalElectrical
Revolving TypeElectrical & ManualElectricalElectricalElectrical
Revolving radius1m - 7m1m - 7m1m - 7m1m - 7m1m - 7m
Lifting Height2m - 10m2m - 10m2m - 10m2m - 10m2m - 10m
Total Height2m - 10m2m - 10m2m - 10m2m - 10m2m - 10m
Revolving Angle 180° & 270°& 360°
Lifting Speed7.2/2..46.9/2.36.6/2.26.6/2.22.7/0.9
